Self Supporting 50M/S 60m Tubular Steel Tower

Product Categories
Hebei Changtong Steel Structure Co., Ltd.
Contact Now

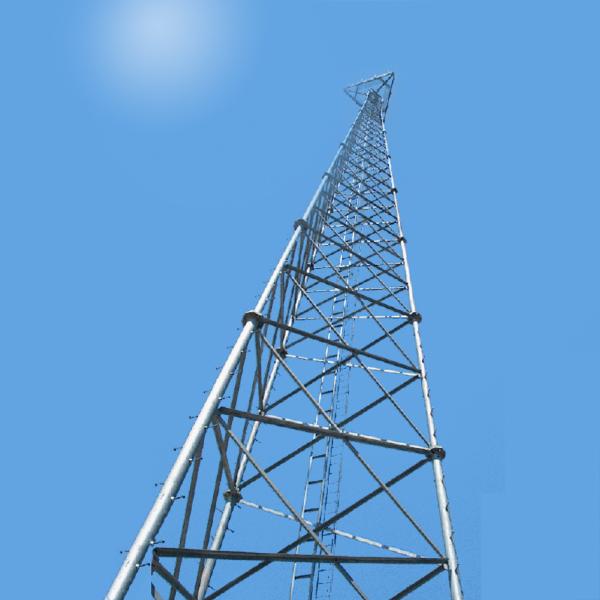

Self Supporting 50M/S 60m Tubular Steel Tower

Brand Name : ChangTong

Model Number : JGT190409-2

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1piece

Price : USD1000-15000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000Ton/year

Delivery Time : 30-45days

Packaging Details : Container transpor, the general situation of the tower for metal reinforcement bind.

Material : Angle SteelQ345/Q235

Maximum Design Wind Speed : 36m/s

Quantity of Platform : Quantity of Platform

Lifetime : More than 30 Years

Application : Mobile Communication Tower

Surface treatment : Hot Dip Galvanized

Height : 10-80m

Mounted : Vehicle

Contact Now

60m high Golden supplier galvanized angle steel 3 legs tubular self supporting telecom tower

Product Description

Specifications for guyed tower
Main Material:steel bar
Design Wind Speed:50M/S
Earthquake Intensity: 8°
Ice Coating:5mm-10mm(different in different regions)
Vertical Deviation:1/1000
Optimal Temperature:-45oC -+45oC
Preservative Treatment: hot-dipped galvanized
Work Life: more than 30years
Material Origin: Baosteel/Shousteel/Hansteel/Tangsteel
Wide Range of Applications
It can be installed in a load-bearing capacity of the roof, ground or slopes.

Advantage
The arrangement of equilateral triangle form and fixation of guyed strand,greatly reduce the weight of the tower; small wind load factor, simple foundation forms, small footprint (typically 0.25m × 0.25m), little damage for the load-bearing object, convenient construction of floor base, can be designed to multi-platform, high carrying capacity, can be mounted multiple antennas and microwave transmission equipment; when constructing in floor, the guyed fixation are made easily for many maintenances of the structures around the floor, greatly accelerate the speed of construction;when constructing in hillside,make the guyed fixation taking advantage of hillside, convenient to install, rapid construction progress, light component, small footprint, little damage for the load-bearing object.

Height 5m ~80 m
Suit for Airport ,seaport,plaza,stadium ,square,highway,street way etc
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-3
Torlance of dimenstion +- 2%
Design detail Cable and Ladder inside or outside as request or design
Working &Resting Platform 1~3 pcs at the top or in the middle
Antenna Support 3-18 PCS
Microwave Dish 3-18 PCS
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by
client required.
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 5-300 KM/H
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Standard 620 mpa
Length of per section ISO 9001
Welding Within 14m once forming without slip joint

We has past flaw testing.Internal and external double welding makes the welding beautiful
in shape

Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension
verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization
or powder coating ,painting →Recalibration →Thread →Packages
Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can
following by client required , each 40HC or OT can loading how many pcs will calculation
base on the client actually specification and data.

Products Show


Self Supporting 50M/S 60m Tubular Steel TowerSelf Supporting 50M/S 60m Tubular Steel Tower

Production Process

Self Supporting 50M/S 60m Tubular Steel TowerSelf Supporting 50M/S 60m Tubular Steel Tower

Detection

Self Supporting 50M/S 60m Tubular Steel Tower

Our Company

Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland

Our Ceretification

Self Supporting 50M/S 60m Tubular Steel Tower
